Web Aligner
Standard Features

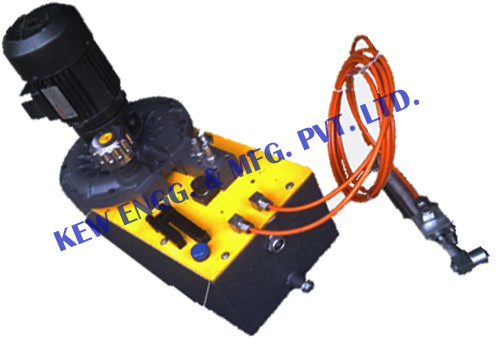

Web – Aligner (Power Pack) Unit Complete With:
- We are a leading manufacturer, exporter and supplier of Web Aligner System from last 25 years with high quality and heavy duty equipment, India.
- 0.5 H.P. Motor
- Air Pipe – 5 Mtr.
- Oil Pipe – 5 Mtr.
- Sensor – 1 pcs
- Adjuster – 1 pcs.
- Air Filter – 1 pcs.
- Oil Filter – 1 pcs.
- Hydraulic Cylinder size 4”, 6” & 8”strock – 1 pcs.
SENSORS:
In the specially designed non-contact Air flow sensors, air is expelled from two opposing orifices. The differential air pressure is use to detect lateral wandering of the material in process. The Airflow sensors are self cleaning & fitted with fine adjustment mounting bracket.
HYDRAULIC CYLINDER:
It works on hydraulic pressure. It actuates the correcting frames. Available in different size from 2″ to 18″ stroke length.
Technical Specification
Web Aligner
Technical Specifications for Web Aligner System:
| TYPE | KEW–17 | KEW–30 |
| Motor rating (3 phase, 50 Hz) | 0.5 HP | 1HP |
| Pump flow rate | 3.4 l/min | 5.8 l/min |
| Tank capacity | 17 liters | 30 liters |
| Oil type | Servo 32, Enklo 44, Hydro 37 | |
| Line pressure | 14 bar | 21 bar |
| Max. Operation force (50.8 mm dia. Cylinder) | 260kg | 389.5 kg |
| Follow-up speed | ||
| Max. At 3.4 l/min | 30mm/sec | – |
| At 5.8 l/min | – | 40mm/sec |
| Air sensor air pressure | 5 to 28 mbar, infinitely adj. | |
| Weight including oil | 40kg | 60kg |
Double Power Pack
Dual Web Aligner
We are skilled in offering high quality and heavy duty the Double Power Pack renowned for providing high capacity, control options & configurations to be utilized in almost any application. Our Double Power Pack is specially designed and manufactured using premium quality hydraulic components and equipment selected from a wide range and assembled using high technology systems, which are designed with technologically advanced concept. Web aligner manufacturer with heavy duty and high quality equipment for different types of Industries and Machines. It is highly used in Textile Processing Machine, Tyre Cord Machinery, Paper Processing and Flexible Packaging Machine with 0.5 to 1.0 H.P.
Electro-Hydro Web Aligner Unit
